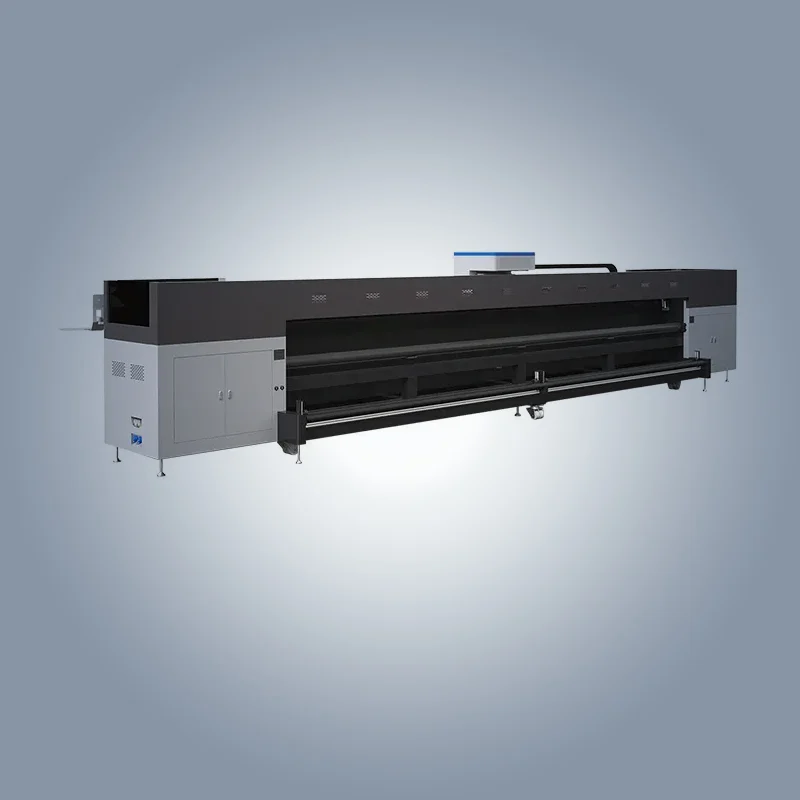

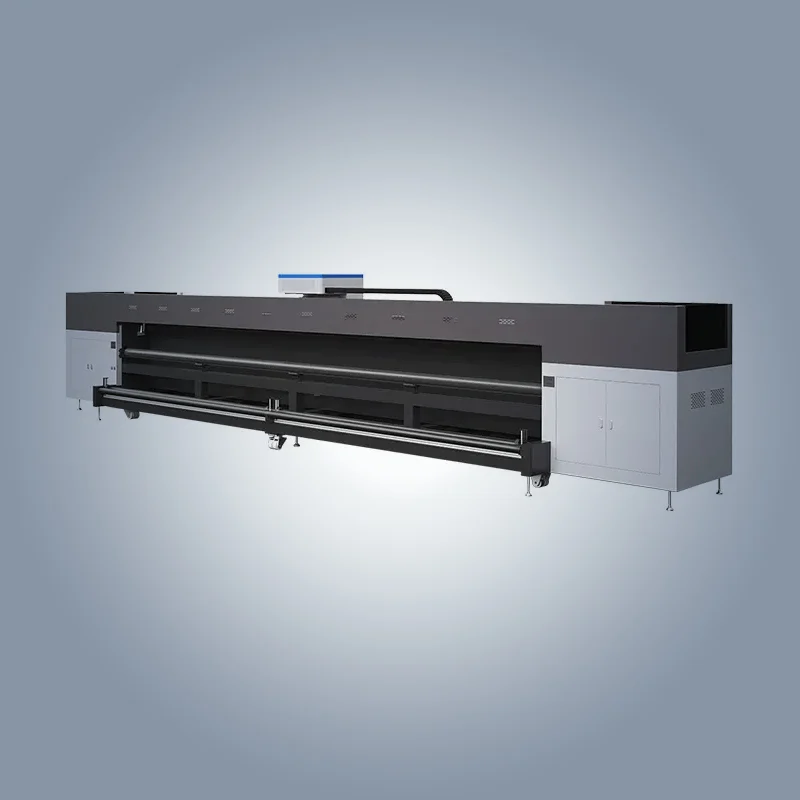

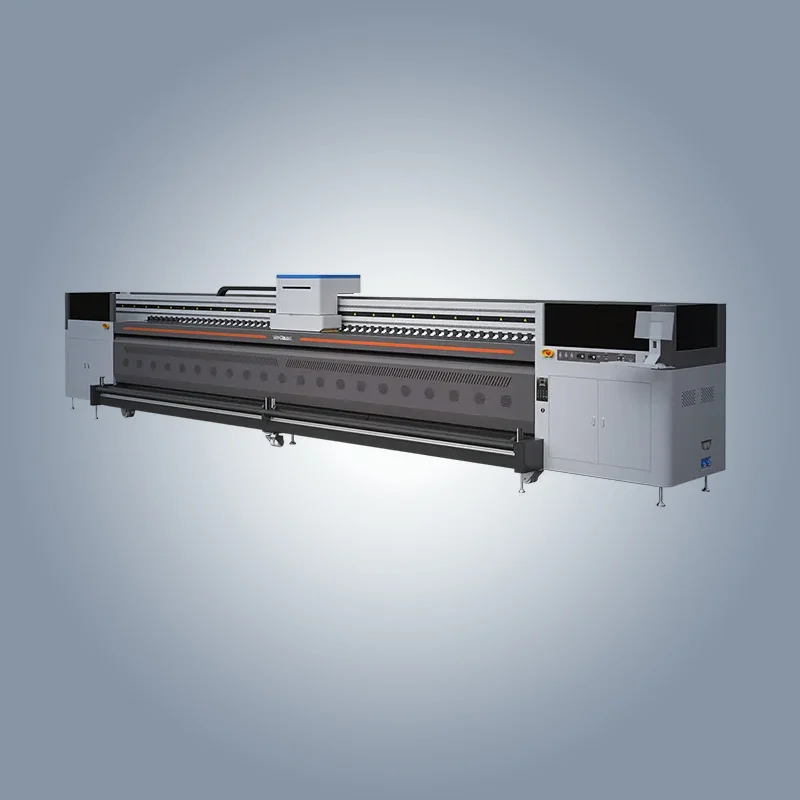

HY-6806 Solvent Printer

6.8m Solvent Printer
Printheads: StarFire 1024
Maximum Speed: 380 ㎡/h
Printing Width: 6.6m

Features

Adopted American Spectra Newest Star Fire 25PL Print Head.Full Steel Print Head with Intelligent Constant Temperature Control System. 1024 Nozzles, Incomparable Printing Performance

1. High Speed

The speed of 6 pcs StarFire 1024 heads’ could be around 330 sqm/h, it’s much higher than other high-speed printers.Then time was saved, so the production and management costs were saved also, This will satisfy customers and delight employees also. Low labor cost: 1 unite Ultra Star printer is equivalent to 3 or 5 or more units general solvent printers, then less space occupation and much labor saving.

2. Color & Resolution

With 10pl and 25pl optional, the resolution of StarFire 1024 printhead is the highest among all solvent printes, which sets up the highest quality standard in printing field.The color presentation of Wit-Color StarFire 1024 printer is incomparable with amazing colors.For all industries, it begins with price competition and ends b quality competition.

3. frying-Drying

High speed solvent printer requests fast image drying. Wit-Color solved the drying problem completely and reduced the rejection rate and labor cost.

4. Low Production Cost

Wit-Color StarFire 1024 printer adopted continuous ink recirculation technology and equipped with original high density ink, it can print over 8 hours continuously with 40% less ink consumption.

5. Long Using Life

StarFire 1024 printhead adopted parts removable and replanceable technology. Allparts are repairable, and the ink system is replaceable. the printhead’s cost is reduced tremendously.

6. Backlit Printing

The global unique backlit printing performance could satisfy professionalcustomers and even exceed their expectations. With rapid market increasing in backlit printing, UltraStar printers enhanced the customers’ prefitability assured.

TECHNICAL PARAMETERS

Model	Ultra Star 6806
Printing Technology	Solvent Printing
Print Head	Star Fire 1024 25PL、Konica1024i 4/8/12H
Acceptable Media	Type		Outdoor Solvent/Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.)
Acceptable Media	Width		≦6600mm
Ink Type	CMYK 25PL Solvent Ink
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity		Color Siphon
Ink Cartridges	Color		CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Star Fire	Mode	2H	4H	6H
		2PASS	110㎡/h	240㎡/h	380㎡/h
		3PASS	80㎡/h	170㎡/h	260㎡/h
		4PASS	60㎡/h	120㎡/h	180㎡/h
	Konica	Mode	4H	8H	12H
		2PASS	240㎡/h	480㎡/h	720㎡/h
		3PASS	130㎡/h	260㎡/h	380㎡/h
		4PASS	80㎡/h	174㎡/h	240㎡/h
Ink Curing Method	Infrared Heater Drying
Control System	Win10
Power	11000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch		L:298.43 x W: 61.03 x H: 82.68 1 Inch=25.4 mm
	Inch		L:232.68 x W: 17.72 x H：25.60 1 Inch=25.4 mm
	Meter		L：7.58m x W: 1.55m x H：2.1m
	Meter		Individual Media Feeding Roll:L：5.91m x W: 0.45m x H：0.65m
Printer Dimension	Inch		L:287.41 x W: 53.15 x H: 67.32 1 Inch=25.4 mm
	Inch		L:228.35 x W: 13.78 x H: 23.23 1 Inch=25.5 mm
	Meter		L: 7.3m x W: 13.5m x H: 1.71m
	Meter		Individual Media Feeding Roll:L: 5.8m x W: 0.35m x H: 0.59m
Weight	N.W 8338 lb. 3790kg 1kg =2.2 lb. G.W 9735 lb. 4425kg 1kg =2.2 lb.
Environment	Power On		Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity: 35 to 80% (No Condensation)
Environment	Power Off		Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity: 35 to 80% (No Condensation)
Safety Certification	CE Certified
✱About 10% speed may vary from different feather printing mode and different PC configurations. All data are subject to change without prior notice.

Expanding Application Scenarios

Billboards
Car stickers
Applications
Outdoor advertising
Vehicle personalization
Branding
Decorative purposes
Materials
arious substrates (e.g., vinyl, plastic, metal)
