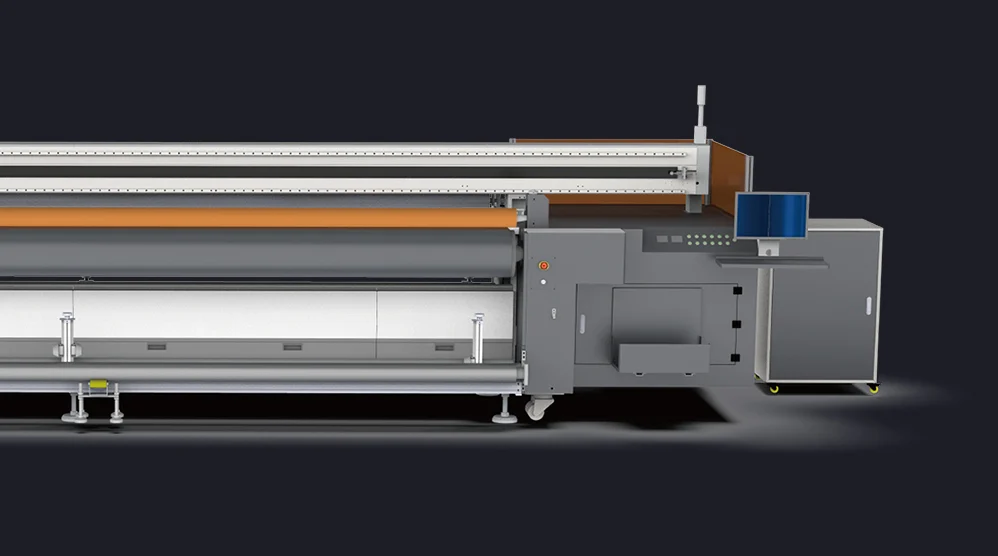

HY-5300 Hybrid UV Printer

Industrial grade UV net belt printer, printing format 5.3 meters, plate and volume integrated printing platform, more widely used.

Nine Premium Advantages Engineering Excellence

Omni-Compatible Flatbed& Roll Hybrid PrinterIndustrial-Grade Dual-Enginefor Rigid & Flexible Media

· Precision flexible Printing: High-definition output on banners/textured fabrics/3P mesh with zero distortion on curved surfaces.

· Rigid Material Mastery: Accurate printing on glass/ceramics/acrylics with heavy-duty load-bearing capacity.

· From commercial signage to home décor customization, industrial applications to artistic creations,One machineunlocks full

industrial chain productivity, reducing equipment investment costs.

Ricohindustrial Sprinkler Gray Level Piezoelectric Nozzle Corrosion Resistance ls Not Easy To Plug

· Micron-level precision technology for stable continuous printing.

· Intelligent ink supply system ensures high-speed quality contro!

· Hand-assembled to aerospace standards, supports high-pressure cleaning.

· Uncompromised Excellence

· Consistent Adhesion

Inteligent constant-pressure control system keeps materials flat and securely adhered for flawless print quality.

Exploring Technology
Printing the Future

Further Exploringat the HY 5300 hybrid

Switchable Unwinding system

1.Dual unwinding modes: Airflow-controlledshaft safety chuck or dual-tube support .
2.Flexible operation: Quick switching betweenmodes ensures smooth material loading andstable printing alignment

Vacuum Adhesion Perfected

1.Smart constant-pressure platform: Auto-adjustssuction for rigid/flexible media (50mm max thickness).
2.Dual clamping bars+ positioning sensors:Guarantees ±0.05mm alignment accuracy.

Minimized Mechanical Failures

1.Anti-vibration drag chain system: Engineered toeliminate jitter and ensure ultra-stable motion during high-speed printing.
2.Proven reliability: 99.9% operational uptimeunderindustrial workloads.

AdvancedInk supply System

1.Dual-stage temperature-controlled ink cartridges:Maintains ink viscosity(±2%) across -10°C to 45°Cenvironments.
2.Military-grade filtration: 5um precision filtersprevent contaminants, guaranteeing 24/7 clog-free operation.

LED Cold-Curing solution

1.Energy-efficient LED technology: Low-heatemission reduces energy consumption by 40%(vs. traditional UV lamps)
2.Eco-friendly design: Mercury-free, low VOCemissions, compliant with EU RoHS standards.

Professional Color Management

1.Integrated RlP software:Caldera/PrintFactorycompatibility for lCC profiling.
2.0ne-click color calibration: Achieves ÃE < 1.5across Pantone" librariesSustainability Highlights.

TECHNICAL PARAMETERS

Mode of Equipment	HY 5300 hybrid
Operating System	Microsoft Windows 10 Pro
Print Colors	CMYK+lclm/W(supports multiple color configurations)
Power Requirements	P:8000W AC220V(+10%):50hz;
Print Height	0-70mm (customizable)
Operation Environment	Temperature: 20°C-30°C Humidity:40-70%RH
Printer Dimension	Rollmedia：max.5200 mm
Machine Dimensions	8600mm2300mm2000mm
Print Head Quantity	4-28(customizable)
Machine Weight	8500kg (varies by configuration)
Curing System	LED UV Curing
File Format	TIFF(RGB&CMYK)BMP、PDF、EPS、JPEG、etc.
Print Heads	Konica 1024i/Ricoh G5 /Ricoh G6
Machine Dimensions	9670mmx2150mmx1900mm
Data lnterface	High-speed USB/Gigabit Ethernet
Machine Weight	7000kg(varies by configuration)
Lifting Function	Automatic electronic carriagelift with manual smart-sensingheight adjustment
Print Resolution	5401080dpi/5401440dpi/5402160dpi/5402880dpi(km1024i)
Print Speed	2 Pass	400m²/h
	4 Pass	220m²/h
	6 Pass	150m²/h
	8 Pass	120m²/h
Media Specifications	Maximum print width	5350mm
	Maximum panel width	5200mm
	Maximum roll media width	5000mm
	Maximum media thickness	50mm
