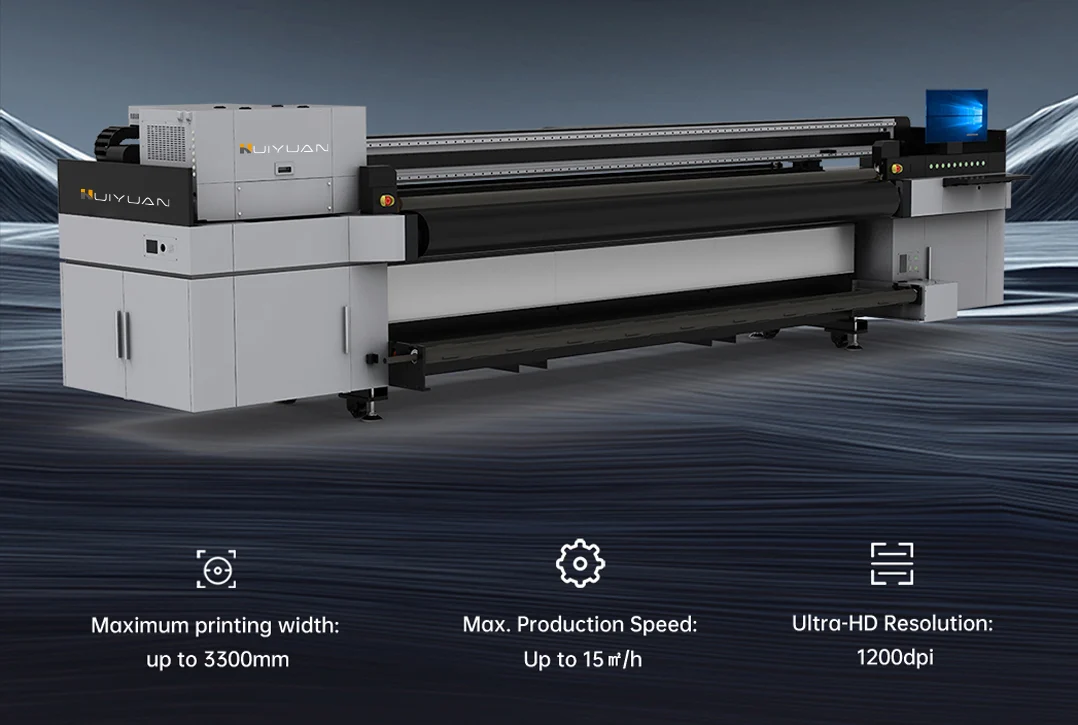

HY-3300 Hybrid UV Printer

Industrial grade UV net belt printer, printing size 3.3 meters, plate and volume integrated printing platform, more widely used.

Nine Premium Advantages Engineering Excellence

Omni-Compatible Flatbed& Roll Hybrid PrinterIndustrial-Grade Dual-Enginefor Rigid & Flexible Media

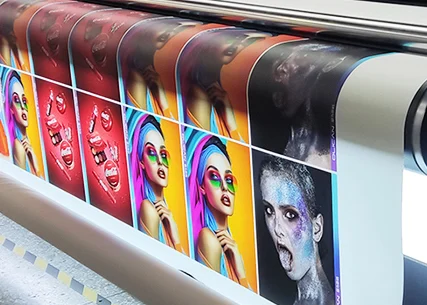

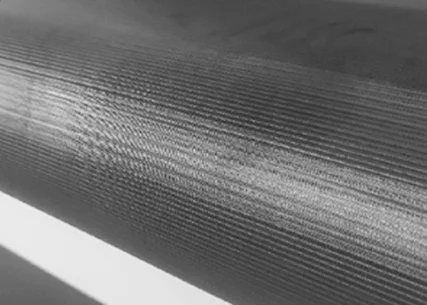

· Precision flexible Printing: High-definition output on banners/textured fabrics/3P mesh with zero distortion on curved surfaces.

· Rigid Material Mastery: Accurate printing on glass/ceramics/acrylics with heavy-duty load-bearing capacity.

· From commercial signage to home décor customization, industrial applications to artistic creations,One machineunlocks full

industrial chain productivity, reducing equipment investment costs.

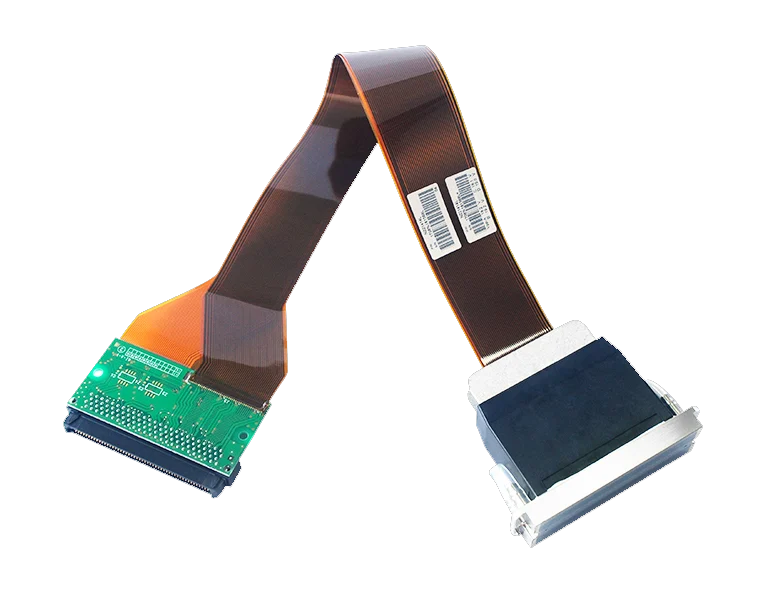

Ricohindustrial Sprinkler Gray Level Piezoelectric Nozzle Corrosion Resistance ls Not Easy To Plug

· Micron-level precision technology for stable continuous printing.

· Intelligent ink supply system ensures high-speed quality contro!

· Hand-assembled to aerospace standards, supports high-pressure cleaning.

· Uncompromised Excellence

· Consistent Adhesion

Inteligent constant-pressure control system keeps materials flat and securely adhered for flawless print quality.

Exploring Technology
Printing the Future

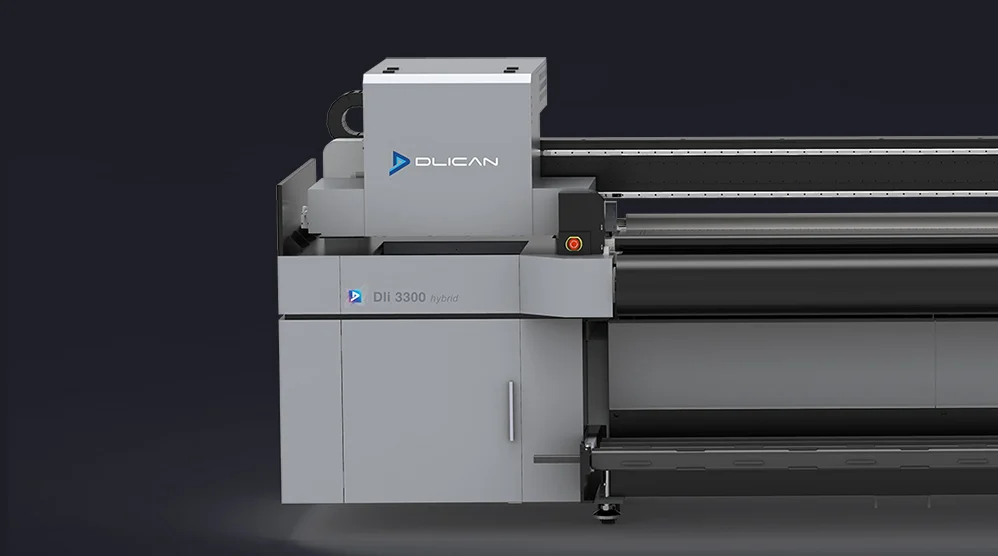

Further Exploringat the HY 3300 hybrid

Switchable Unwinding system

1.Dual unwinding modes: Airflow-controlledshaft safety chuck or dual-tube support .
2.Flexible operation: Quick switching betweenmodes ensures smooth material loading andstable printing alignment

Vacuum Adhesion Perfected

1.Smart constant-pressure platform: Auto-adjustssuction for rigid/flexible media (50mm max thickness).

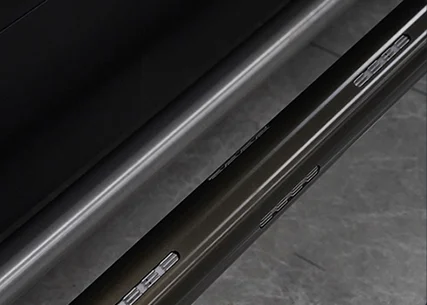

2.Dual clamping bars+ positioning sensors:Guarantees ±0.05mm alignment accuracy.

Minimized Mechanical Failures

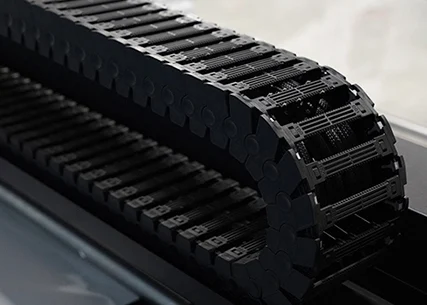

1.Anti-vibration drag chain system: Engineered toeliminate jitter and ensure ultra-stable motion during high-speed printing.
2.Proven reliability: 99.9% operational uptimeunderindustrial workloads.

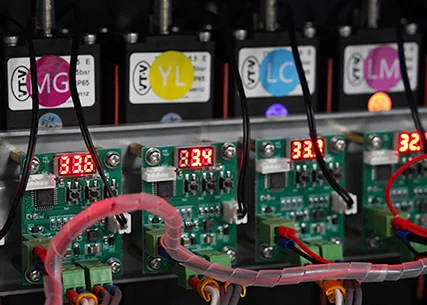

AdvancedInk supply System

1.Dual-stage temperature-controlled ink cartridges:Maintains ink viscosity(±2%) across -10°C to 45°Cenvironments.
2.Military-grade filtration: 5um precision filtersprevent contaminants, guaranteeing 24/7 clog-free operation.

LED Cold-Curing solution

1.Energy-efficient LED technology: Low-heatemission reduces energy consumption by 40%(vs. traditional UV lamps)
2.Eco-friendly design: Mercury-free, low VOCemissions, compliant with EU RoHS standards.

Professional Color Management

1.Integrated RlP software:Caldera/PrintFactorycompatibility for lCC profiling.
2.0ne-click color calibration: Achieves ÃE < 1.5across Pantone" librariesSustainability Highlights.

TECHNICAL PARAMETERS

Mode of Equipment	HY 3300 hybrid
Power Requirements	P:10000W AC220V(+10%);50hz;
Printing Precision	1200DPI(max)
Printer Dimensions	5800mmx1615mmx1650mm
Curing System	LED-UV curing technology
Printer Weight	2800kg(weights are diffrent from different configurations)
Print Head	Standard:Ricoh-G5 Optional: G6
File Format	PDF、TIFF(RGB&CMYK)、BMP、EPS、JPEG
Printing System	DLICAN-7p Professional Edition-Hybrid UV flat/roll printerwith texture printing technology
Standard Colors	Cyan, Magenta, Yellow, Black,Light Cyan, Light Magenta, LightYellow, Light Black, Texture White
RlIP Software	Printfactory/Caldera/ColorGATE/PhotoPrintrip
Printing Colors	Standard: C, M, Y, K, Texture White;Optional: lc, lm, ly, lk, gold varnish,gloss varnish
Optional Colors	Gloss varnish, gold varnish,fluorescent magenta,fluorescent yellow
Printing Dimensions	Flatbed:1640 x2000 mm Roll-to-roll: max.1640 mm width
Production Capacity	Basic Emboss Mode(0.5mm solid card)	15 m²/hour(High-quality production mode)
	Standard Emboss Mode(1.0mm solid card)	8 m²/hour(High-quality production mode)
	Medium-High Emboss Mode(1.5mm solid card)	5.5 m²/hour(High-quality production mode)
Media Specifications	Maximum print width	3250mm
	Maximum panel width	3300mm
	Maximum roll media width	3200mm
	Maximum media thickness	50mm
